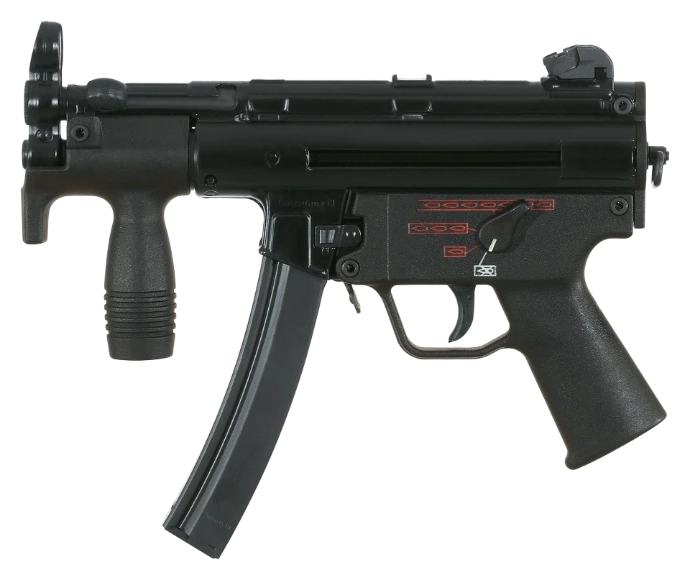

MP5 K

  • Extremely reliable, precise and safe-to-use submachine gun, thanks to roller-delayed blowback
  • Capable of withstanding barrel obstructions as per NATO AC225/D14
  • Over-the-beach (OTB) capability
  • The weapon can be set to safety in any loading state.
  • NATO STANAG 4694 clamping profile rail for mounting sights and sighting accessories (optional)
  • HKey handguard (optional)
  • Tool-free assembly/disassembly of the main assembly groups at user level
  • Modular pistol grip interface for using different trigger group combinations
  • Modular buttstock interface for the use of different buttstock designs
  • HK precision barrel made of cold hammer-forged and hard chrome-plated special steel
  • Battle-proven submachine gun of numerous law enforcement authorities, armed forces and special forces of NATO/ NATO partners


Specifications

 Caliber
9 mm x 19

 Magazine Capacity
15/30 Rd

 Modes of Fire
Semi-Auto / Full Auto / 3 Round Bursts

 Rate of Fire
900 Rounds/min

Muzzle Velocity
375 m/s

Muzzle Energy
570 J

Length max
325 mm

 Width
50 mm

 Height
210 mm

 Barrel Length
115 mm

 Weapon Weight
2 kg

 Magazine weight
170 g

Operation

The MP5 K uses a roller-delayed blowback system and fires from a closed bolt, a design that contributes to consistent reliability and controllability in rapid fire.

Chassis

The MP5 K’s chassis consists of a compact receiver and housing that supports the barrel, bolt assembly, and fire control group, designed to keep the overall weapon small and maneuverable.

Slide

While the MP5 K does not have a traditional pistol slide like a handgun, its reciprocating bolt and associated carrier assembly move within the receiver to extract spent cartridges and chamber fresh rounds during firing.

Maintenance

Regular maintenance of the MP5 K involves field-stripping the firearm, cleaning the bolt, barrel, and contact surfaces, and lightly lubricating moving parts to ensure reliable operation.
